LED Brand: | Nationstar | Input Voltage: | AC85~265V |
---|---|---|---|
Brightness: | 4500CD/sqm | LED Color: | RGB |
LED Quantity: | 16384pixel/sqm | Transparent: | >62% |
Viewing Angle: | H/V:160°/140° | Protction Level: | IP43, Suitable For Indoor |
High Light: | Flexible Led Video Wall 4500CD/Sqm,P7.8 Flexible Led Video Wall,AC85V Flexible Led Video Wall |
P7.8 Shopping Mall Advertising Flexible Led Video Wall 4500CD/sqm
Product description
Product parameters
Product Name: | P7.81*7.81 LED transparent screen |
Item No: | MH-M1000-P7.8x7.8 |
Light Source Brand: | Nationstar |
Light Source Model: | SMD1921 |
Size/Unit: | W:500mm*H1000mm*D58mm |
Viewing Angle: | H160°/V140° |
Power(W)/㎡: | 800W/sqm |
Average Power/㎡(W): | 270W/sqm |
Voltage: | AC85~265V |
Pixel Pitch(mm): | 7.81mm(H)*7.81mm(V) |
Resolution: | 64pixel*128pixel/Unit |
LED quantity/㎡: | 16384pixel/sqm |
Brightness(CD/㎡): | >4500CD/sqm |
Grey Scale: | 65536 |
Refresh Rate(Hz): | >1920Hz |
Transparency: | >62% |
Weight: | 10kg/sqm |
Protection Grade: | IP43 |
Operation Temperature: | -20℃~45℃ |
Life Time: | ≥50000 hours |
Related Cert.: | CE RoHS FCC |

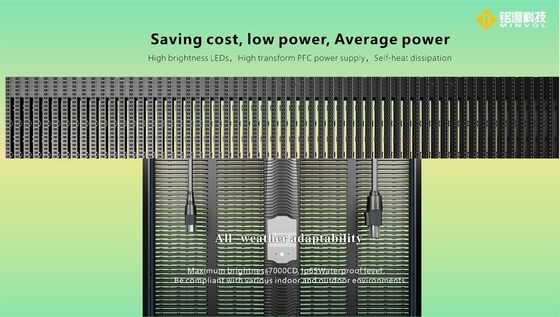

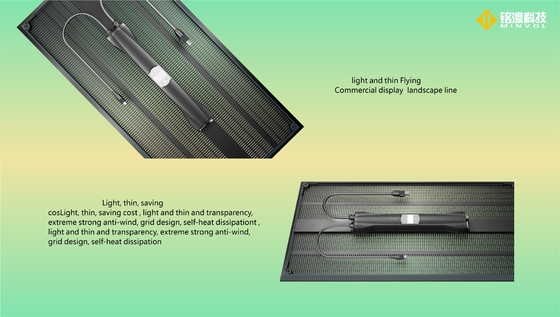

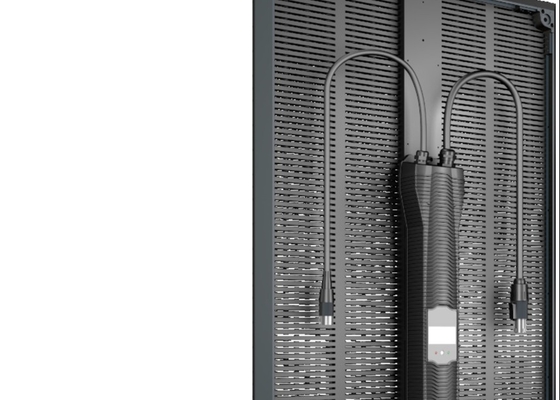

Product pictures
Module size
Wiring Diagram

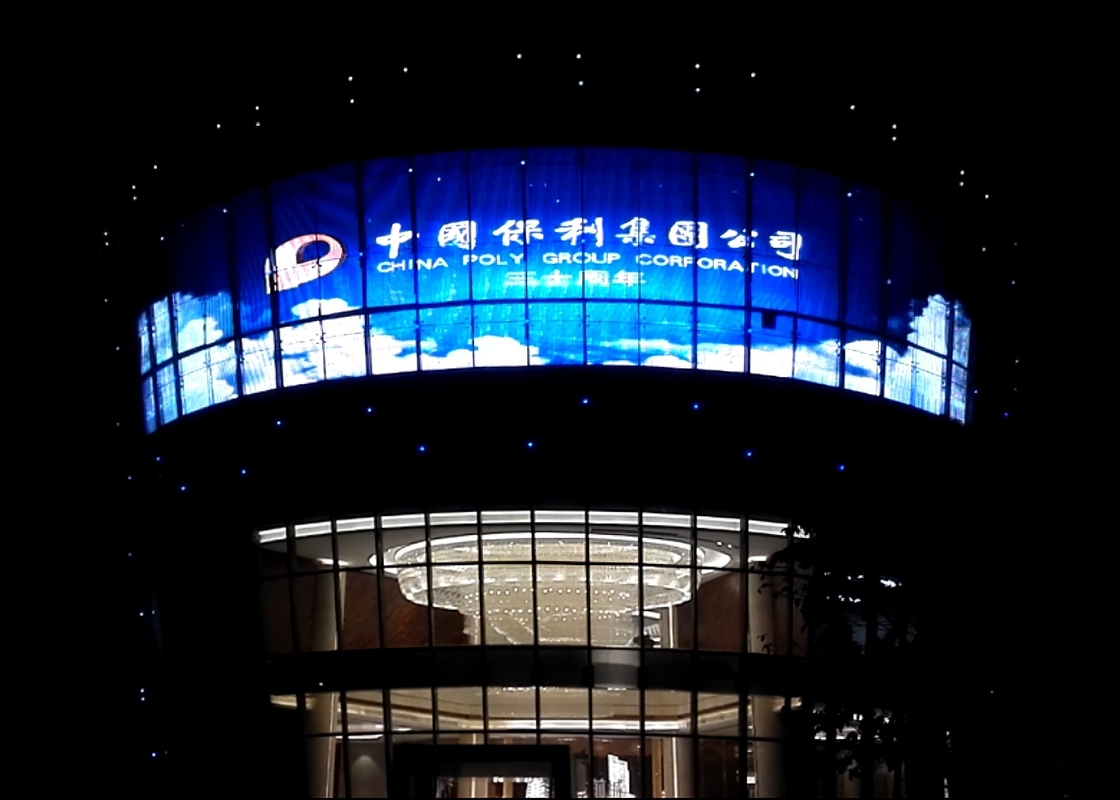

Projects pictures
