P31.25 Waterproof Transparent Grid LED Display Mesh LED grid Screen for Glass Window Building

Certification
China Shenzhen Minvol Technology Co., Ltd. certification
China Shenzhen Minvol Technology Co., Ltd. certification
Customer Reviews
Frankly, In this project, i also ask other led supplier in China quote for us. And their price is cheaper than yours about 10%. But i still use your products because your support, your solution and we have cooperated quite long time.

—— Quang Thành

I have a good news, we finally received the advanced payment from the client! This is the result of our mutual merit, due to coherence of our work with your company, promptly discussing all the requests and provocative moments from competitors and client.We appreciate your support and help in this important project!

—— Marina

Dear Hoy, good day. We decided to choose for this project solutions offered in the local market. Thank you for your efforts and good support, we very much appreciate it! when have new inquiries for our future projects, I will let you know.

—— Irina

Thank you once again that you informed us about this request, we appreciate it very much! Because we spent too much effort and finances for this project.

—— Gremen

I'm Online Chat Now

P31.25 Waterproof Transparent Grid LED Display Mesh LED grid Screen for Glass Window Building

P31.25 Waterproof Transparent Grid LED Display Mesh LED grid Screen for Glass Window Building
P31.25 Waterproof Transparent Grid LED Display Mesh LED grid Screen for Glass Window Building

Large Image :  P31.25 Waterproof Transparent Grid LED Display Mesh LED grid Screen for Glass Window Building

Product Details:
Place of Origin: China
Brand Name: Minvol
Certification: CE/RoHS/FCC
Model Number: MH-G-2R2G2B-P31.25*31.25E
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Carton
Delivery Time: 15-25 Days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 200sqm/day
Detailed Product Description
LED Brand: Epistar Input Voltage: DC36-48V
Brightness: 9200CD/sqm LED Color: RGB
Usage: Outdoor,Indoor Screen Dimension: Can Be Customized
Display Function: Video,animation,graphics
High Light:

2R2G2B Full Color Led Advertising Display

,

P67 Led Advertising Digital Sign

,

FCC Waterproof Led Advertising Display

P31.25 Waterproof Transparent Grid LED Display Mesh LED grid Screen for Glass Window Building



 Product description


    LED outdoor advertising screen has the characteristics of light weight, high brightness, high transparency and low wind loading, which breakthroughs many restrictions of building wall for traditional LED display. LED louver screen integrates the advantages of high resolution, high quality and high gray level of conventional LED display, fully combines centralized coontrol and long-distance transmission technology, which have totally solved the transmission problem caused by signal interruption of LED display. The screen adopts aluminum alloy light bar splicing, each group of light adopts signal isolation technology, even single bar has been broken, still can not influence cach other. The unit screen has high heat dissipation efficiency, no need air conditioning, and can be installed in the front or rear of building facade, it makes the project application more simple, more flexible, more efficient. lt is the best choice of indoor and outdoor display screen.



Product parameters



Product Name: P31.25*31.25 LED louver screen
Item No: MH-G-2R2G2B-P31.25*31.25
Light Source Brand: Epistar
Light Source Model: 346 2R2G2B DIP
Size/Unit: 1500mm(L)*500mm(H)
Viewing Angle: H120°/V60°
Power(W)/㎡: 384W/sqm
Average Power/㎡(W): 128W/sqm
Voltage: DC36-48V
Pixel Pitch(mm): 31.25mm(H)*31.25mm(V)
Light Bar Size(mm): 14mm*1500mm
Resolution: 16pixel*48pixel/Unit
LED quantity/㎡(PCS):  1024pixel/sqm
Brightness(CD/㎡): >7200CD/sqm
Grey Scale: 65536
Refresh Rate(Hz): >5000Hz
Transparency: >56%
Weight: 10.8kg/sqm
Protection Grade: IP67
Operation Temperature: -20℃~50℃
Life Time: ≥50000 hours
Related Cert.: CE RoHS FCC



Product  pictures



P31.25 Waterproof Transparent Grid LED Display Mesh LED grid Screen for Glass Window Building 0

P31.25 Waterproof Transparent Grid LED Display Mesh LED grid Screen for Glass Window Building 1

P31.25 Waterproof Transparent Grid LED Display Mesh LED grid Screen for Glass Window Building 2

P31.25 Waterproof Transparent Grid LED Display Mesh LED grid Screen for Glass Window Building 3



Module size


P31.25 Waterproof Transparent Grid LED Display Mesh LED grid Screen for Glass Window Building 4





Product Installation Schematic



P31.25 Waterproof Transparent Grid LED Display Mesh LED grid Screen for Glass Window Building 5



Control Diagram



P31.25 Waterproof Transparent Grid LED Display Mesh LED grid Screen for Glass Window Building 6

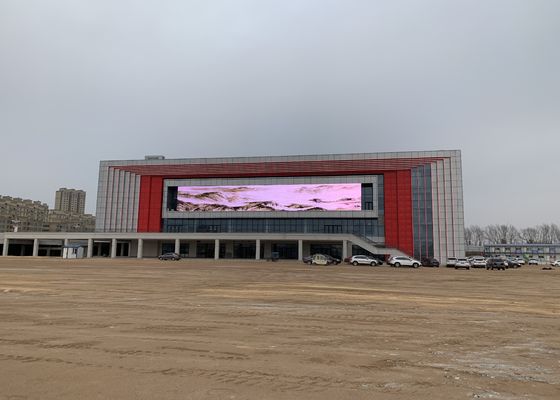

Projects pictures





P31.25 Waterproof Transparent Grid LED Display Mesh LED grid Screen for Glass Window Building 7

P31.25 Waterproof Transparent Grid LED Display Mesh LED grid Screen for Glass Window Building 8

P31.25 Waterproof Transparent Grid LED Display Mesh LED grid Screen for Glass Window Building 9

P31.25 Waterproof Transparent Grid LED Display Mesh LED grid Screen for Glass Window Building 10

P31.25 Waterproof Transparent Grid LED Display Mesh LED grid Screen for Glass Window Building 11

P31.25 Waterproof Transparent Grid LED Display Mesh LED grid Screen for Glass Window Building 12





Exhibition pictures
P31.25 Waterproof Transparent Grid LED Display Mesh LED grid Screen for Glass Window Building 13
P31.25 Waterproof Transparent Grid LED Display Mesh LED grid Screen for Glass Window Building 14
P31.25 Waterproof Transparent Grid LED Display Mesh LED grid Screen for Glass Window Building 15

P31.25 Waterproof Transparent Grid LED Display Mesh LED grid Screen for Glass Window Building 16
P31.25 Waterproof Transparent Grid LED Display Mesh LED grid Screen for Glass Window Building 17
