| Input Voltage: | AC85~265V | Brightness: | ＞4500CD/sqm |
|---|---|---|---|
| LED Quantity: | 9216pixel/sqm | Maximum Power: | 800W/sqm |
| Tube Chip Color: | RGB | Module Size: | 1024mm(L)*250mm(H) |
| High Light: | IP43 SMD LED Video Wall,SMD2427 Led Curtain Advertising Display,FCC Indoor Transparent LED Display |
||
P10 Indoor Transparent LED TV Display Film Screen
Product features
2. Easy installation
The power drive box can be easily disassembled from the back of the screen, and the power supply and control card can be easily replaced, and the maintenance is simple.
Product parameters
| Product Name: | P0 LED intelligent cloud screen |
| Item No: | MH-ICS-P20 |
| Light Source Model: | 2427 |
| Size/Unit: | 1024mm(L)*250mm(H) |
| Viewing Angle: | H120°/V120° |
| Power(W)/㎡: | 800W/㎡ |
| Average Power/㎡(W): | 266W/㎡ |
| Voltage: | AC85-265V |
| Pixel Pitch(mm): | 10.42mm(H)*10.42mm(V) |
| Resolution: | 96pixel*24pixel/Unit |
| LED quantity/㎡(PCS): | 9216pixel/㎡ |
| Brightness(CD/㎡): | ＞4500CD/㎡ |
| Grey Scale: | 65536 |
| Refresh Rate(Hz): | ＞3840Hz |
| Transparency: | ＞86% |
| Weight: | 2.5kg/Unit |
| Protection Grade: | IP43 |
| Operation Temperature: | -20℃~45℃ |
| Life Time: | ≥50000 hours |
| Related Cert.: | CE RoHS FCC |

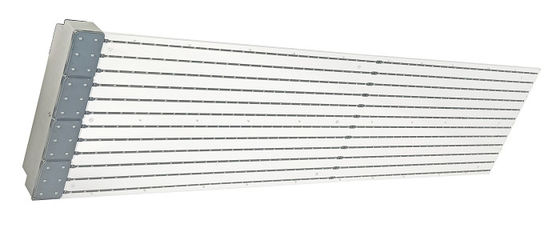

Product pictures
Product Installation Schematic
Projects pictures
