Outdoor P25 Transparent LED Transparent Screen Full Color 7200CD/Sqm

Outdoor P25 Transparent LED Transparent Screen Full Color 7200CD/Sqm
Outdoor P25 Transparent LED Transparent Screen Full Color 7200CD/Sqm

Large Image :  Outdoor P25 Transparent LED Transparent Screen Full Color 7200CD/Sqm

Product Details:
Place of Origin: China
Brand Name: Minvol
Certification: CE/RoHS/FCC
Model Number: MH-G-2R2G2B-P25*50E
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: negotiable
Delivery Time: negotiable
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 200sqm/day
Detailed Product Description
LED Brand: Epistar Input Voltage: DC36-48V
Brightness: 7200CD/sqm LED Color: RGB
Screen Dimension: Customized Tube Chip Color: Full Color
Usage: Outdoor Display Function: Video
Color: Full Color Viewing Angle: 140 Degree /140 Degree
High Light:

P30 Led Curtain Screen

,

Outdoor P25 Led Mesh Screen

,

DC36V Led Mesh Screen

 Product description



outdoor Full color P25 Transparent led display screen DIP curved led video wall glass led screen for showcase



    LED transparent screen has the characteristics of light weight, high brightness, high transparency and low wind loading, which breakthroughs many restrictions of building wall for traditional LED display. LED louver screen integrates the advantages of high resolution, high quality and high gray level of conventional LED display, fully combines centralized coontrol and long-distance transmission technology, which have totally solved the transmission problem caused by signal interruption of LED display. The screen adopts aluminum alloy light bar splicing, each group of light adopts signal isolation technology, even single bar has been broken, still can not influence cach other. The unit screen has high heat dissipation efficiency.



Product parameters



Product Name: P25*50 LED louver screen
Item No: MH-G-2R2G2B-P25*50E
Light Source Brand: Epistar
Light Source Model: 346 2R2G2B DIP
Size/Unit: 1200mm(L)*800mm(H)
Viewing Angle: H120°/V60°
Power(W)/㎡: 260W/sqm
Average Power/㎡(W): 90W/sqm
Voltage: DC36-48V
Pixel Pitch(mm): 25mm(H)*50mm(V)
Light Bar Size(mm): 14mm*1200mm
Resolution: 16pixel*48pixel/Unit
LED quantity/㎡(PCS): 800 pixel/sqm
Brightness(CD/㎡): >7200CD/sqm
Grey Scale: 65536
Refresh Rate(Hz): >5000Hz
Transparency: >72%
Weight: 10.8kg/sqm
Protection Grade: IP67
Operation Temperature: -20℃~50℃
Life Time: ≥50000 hours
Related Cert.: CE RoHS FCC



Product  pictures

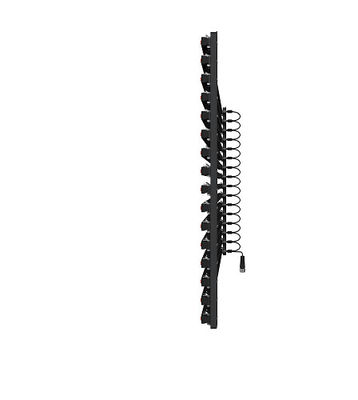

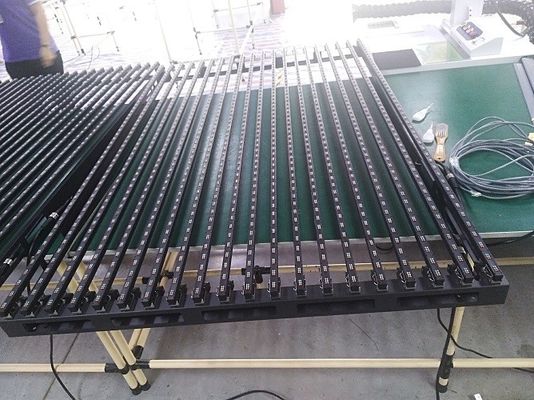

Outdoor P25 Transparent LED Transparent Screen Full Color 7200CD/Sqm 0

Outdoor P25 Transparent LED Transparent Screen Full Color 7200CD/Sqm 1

Outdoor P25 Transparent LED Transparent Screen Full Color 7200CD/Sqm 2

Outdoor P25 Transparent LED Transparent Screen Full Color 7200CD/Sqm 3



Module size


Outdoor P25 Transparent LED Transparent Screen Full Color 7200CD/Sqm 4





Product Installation Schematic



Outdoor P25 Transparent LED Transparent Screen Full Color 7200CD/Sqm 5



Control Diagram



Outdoor P25 Transparent LED Transparent Screen Full Color 7200CD/Sqm 6

Projects pictures



Outdoor P25 Transparent LED Transparent Screen Full Color 7200CD/Sqm 7

Outdoor P25 Transparent LED Transparent Screen Full Color 7200CD/Sqm 8

Outdoor P25 Transparent LED Transparent Screen Full Color 7200CD/Sqm 9

Outdoor P25 Transparent LED Transparent Screen Full Color 7200CD/Sqm 10

Outdoor P25 Transparent LED Transparent Screen Full Color 7200CD/Sqm 11
