Product Details:
Payment & Shipping Terms:
|
LED Brand: | Epistar/ Cree | Power: | 260W |
---|---|---|---|
Color: | RGB SMD | Pixel Pitch: | P16*16 |
Usage: | Outdoor | Display Function: | Video,Animation |
Screen Dimension: | Customized | Tube Chip Color: | Full Color |
Pixels: | Other | Brightness: | 7500cd/sqm |
Warranty: | 2 Years | Life Span: | 100000hours |
High Light: | 260W See Through LED Screen,7800CD/M2 See Through LED Screen,AC85V Transparent Glass LED Display |

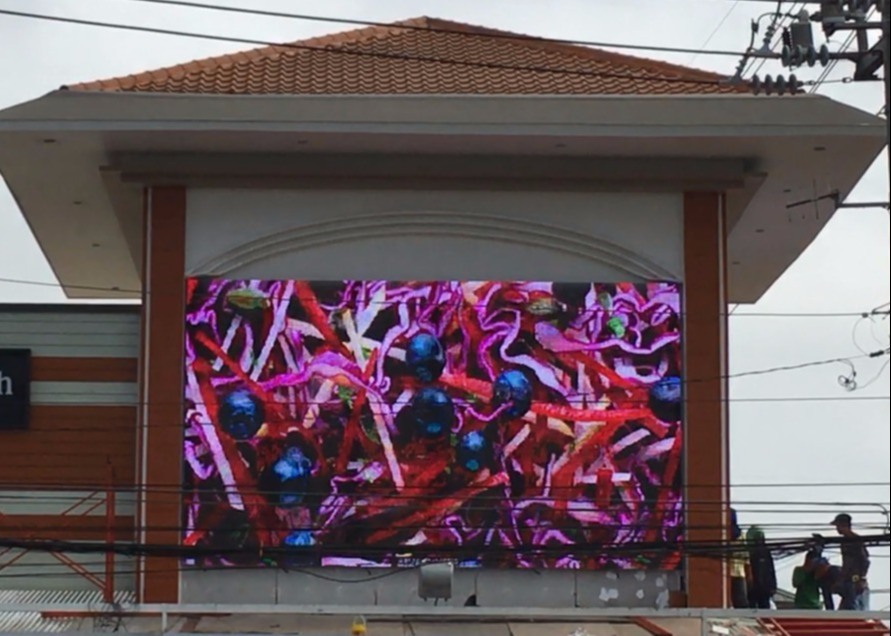

See Through Full Color High Brightness RGB P16 Mesh Grille Large Indoor Transparent Glass LED Display Panel Screen
Features
1. the new mask design, so that the light emitted by the LED almost zero reflection to ensure that the display screen effect.
2. the unit module of the box design using a high temperature spray technology, greatly improve the anti-rust function.
3. the front of the module using high-quality potting seal, the back of a waterproof apron, improve the waterproof performance of the display.
P16 LED | MH-M-SMD-P16 |
Pixel Pitch | 16mm |
Pixel Density | 3906/sq.m. |
Pixel per Tile | 64x32 |
LED Configuration | SMD 3-in-1 |
Brightness(CD/㎡) | >7800CD |
Viewing Angle | H120°/V120° |
Transparency | >55% |
Tile dimension(WxHxD) | 1024mm x 512mm x 88mm |
Tile Weight | 7.5Kg |
IP(Front & Rear) | IP66 |
Grey Scale | 16bit |
Scan | Static |
Refresh Rate | >11520Hz |
Voltage | AC85V--AC265V |
Max Power per Tile | 800W /M2 260W/average power |
Control Mode | Computer or SD card |
Strip Orientation | Horizontal or Vertical |
Installation | Frame installation |
Lifetime | ≥100,000h |
Operating Temp/Humidity | -40℃--45℃,10%--90%RH |
Storage Temp/Humidity | -40℃--60℃,10%--90%RH |
